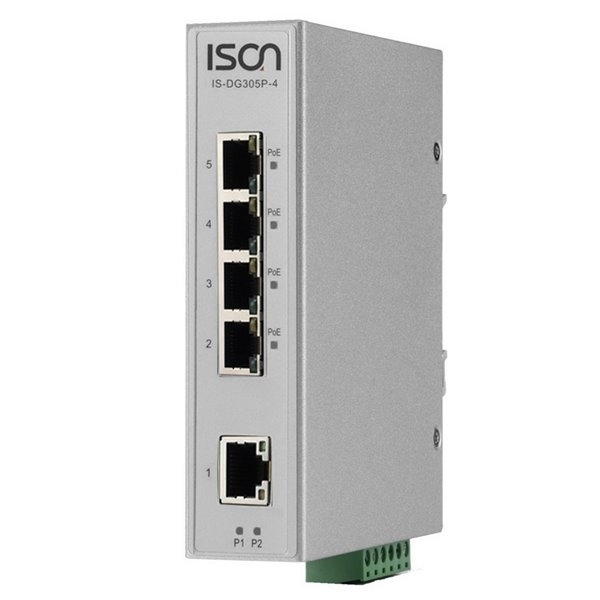

IS-DG305P Series (4PoE/PoE+)

IS-DG305P Series (4PoE/PoE+)

5-port Gigabit Unmanaged Layer 2 Industrial PoE/PoE+ Switch

The IS-DG305P Series full Gigabit unmanaged 5-port Ethernet Switches with 4 IEEE 802.3af/at PoE ports provide easy to use plug-n-play applications; a full Gigabit network provides higher throughput than legacy (10/100Mbs) fast Ethernet network. The cost effective IS-DG305P Series unmanaged switches can provide power and transmit data directly through a single Ethernet cable, which is ideal for factory production lines or even embedded into machine systems. The IS-DG305P Series unmanaged switches also support network traffic optimization with useful function by default, such as QoS and storm protection.


Product Features

  • 5 / 4 Giga Copper ports with 0 / 1 100/1000 SFP ports
  • Support up to 4 port IEEE 802.3af/at ports (15.4/30Watt)
  • Support 9K Jumbo frames
  • IEEE 802.3x flow control & back-pressure
  • Layer 2 Line-Speed Switching Fabric, non-blocking
  • Support IEEE 802.1p TOS/Diffserv, QoS
  • Multicast / Broadcast / Flooding Storm Control
  • Fan-Less design with wide-temperature range (-40~75ºC)
  • Redundant power input (46~57 VDC) & Reserve power protection
  • DIN-Rail or wall mount installation
  • Support Relay Output Alarm
  • IP 30 Protection
  • 1.5KV Hipot
  • 2KV surge immunity on RJ45 ports
