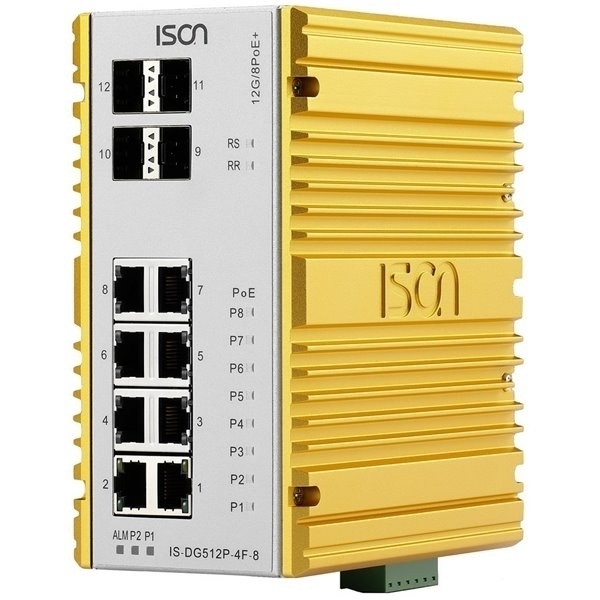

IS-DG512P Series (8PoE/PoE+)
12-ports DIN-Rail managed Layer 2/4 Industrial PoE/PoE+ Switch
The IS-DG512P Series full Gigabit managed 12-port Ethernet switch with up to 8 PoE IEEE 802.3af/at PoE ports provide easy to use plug-n-play applications; a full Gigabit network provides higher throughput than legacy (10/100Mbs) Fast Ethernet networks. The cost effective IS-DG512P Series managed switches can provide power and data directly through a single Ethernet cable, ideal for factory production lines or can even be embedded into machine systems. The IS-DG512P Series managed switches are especially good for building automation, CCTV, ITS and security/safety related applications.
Product Features
- Provide 8 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP(SX/LX/LHX) ports
- Support up to 8 PoE port, IEEE 802.3af/at PoE, 15.4/30 Watt output, Full Load
- Support up to 2 Ultra High Power PoE port, 60 Watt output Configurable
- Support Smart PoE management function, PoE On/Off, Scheduling.
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- Support I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Support Ring Coupling, Multiple Ring, Dual Homing
- Private/Port-based VLAN, IEEE 802.1Q Tag-based VLAN, Protocol-based VLAN, Private VLAN, IP-Subnet based VLAN, Voice VLAN, IEEE 802.1ad Double Tagging (QinQ), MVR, VCL
- IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server
- VeriPHY Cable Diagnostics, Per VLAN mirroring
- Redundant Power Input (46~57 VDC) & Reverse power protection
- SNMP v1/v2c/v3, Trap / Inform
- Din-Rail and Wall Mount Installation
- Port Power Saving, Loop Protection, IP 30 Protection
- 2KV surge immunity on RJ45 Copper port, 1.5KV Hipot
- Rugged Fanless Design
- Fault Alarm Notification (Power, Ports)
Files Available
- Product Datasheet for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- Product Diagram for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- CE Report for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- FCC Report for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- CE Certification for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- FCC Certification for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- CLI User Guide for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- WEB User Guide for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- PoE Guide for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- SW Guide for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- H/W Guide for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
- UL Certification for IS-DG512P Series (8PoE/PoE+) (MOQ:30)
