IS-RG510P Series (8PoE/PoE+) (MOQ:20)

IS-RG510P Series (8PoE/PoE+) (MOQ:20)

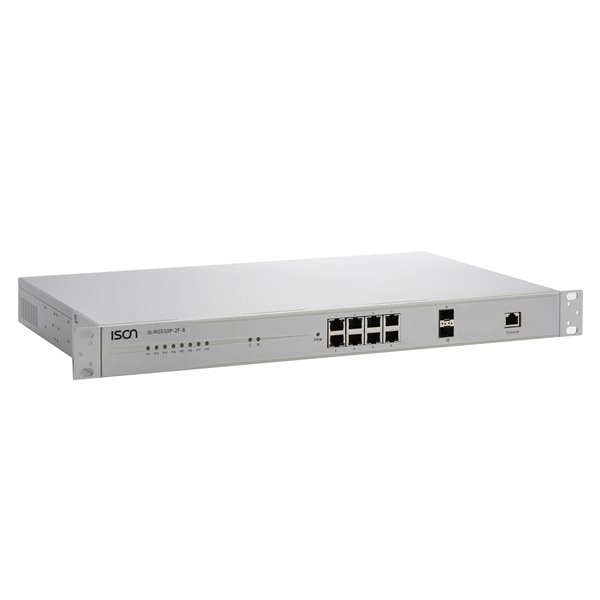

10-ports Gigabit Rack Mount Managed Layer 2/4 Industrial PoE Switch

The IS-RG510P Series is full Gigabit managed 10-port Ethernet switch with up to 8 PoE IEEE 802.3af/at PoE ports provide easy to use plug-n-play applications; a full Gigabit network provides higher throughput than legacy Fast Ethernet network. The cost effective IS-RG510P Series managed switches can provide power and data directly through a single Ethernet cable, which is ideal for factory production line or embedded into machine system.  The IS-RG510P Series managed switches are especially good for Building automation, CCTV, ITS and security/safety related applications.



Product Features

  • Provide 8 Gigabit RJ45 Copper ports plus 2 100 / 1000 Based SFP(SX/LX/LHX) ports
  • Support up to 8 PoE port, IEEE 802.3af/at PoE, 15.4/30 Watt output, Full Load
  • Support up to 2 Ultra High Power PoE port, 60 Watt output Configurable
  • Support Smart PoE management function, PoE On/Off, Scheduling.
  • Support 9K Jumbo frames
  • Layer 2 Line-Speed Switching Fabric, non-blocking
  • Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
  • Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
  • Support I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
  • Support BLP (Bad Link Protection) of I.A. Ring
  • Support Ring Coupling, Multiple Ring, Dual Homing
  • Private/Port-based VLAN, IEEE 802.1Q Tag-based VLAN, Protocol-based VLAN, Private VLAN, IP-Subnet based VLAN, Voice VLAN, IEEE 802.1ad Double Tagging (QinQ), MVR, VCL
  • Multicasting support IGMP v1/v2/v3, proxy & snooping, MLD snooping
  • IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server
  • VeriPHY Cable Diagnostics, Per VLAN mirroring
  • AC Power Input 100/240 VAC, 50Hz ~ 60Hz
  • 10KV Lightning Protection (Power Module)
  • SNMP v1/v2c/v3, Trap / Inform
  • Rack Mount, Wall Mount installation
  • Port Power Saving
  • Loop Protection
  • IP 30 Protection
  • 2KV surge immunity on RJ45 Copper port
  • 1.5KV Hipot
  • Rugged Fanless Design
  • Fault Alarm Notification (Power, Ports)
  • Support IPV4/V6
