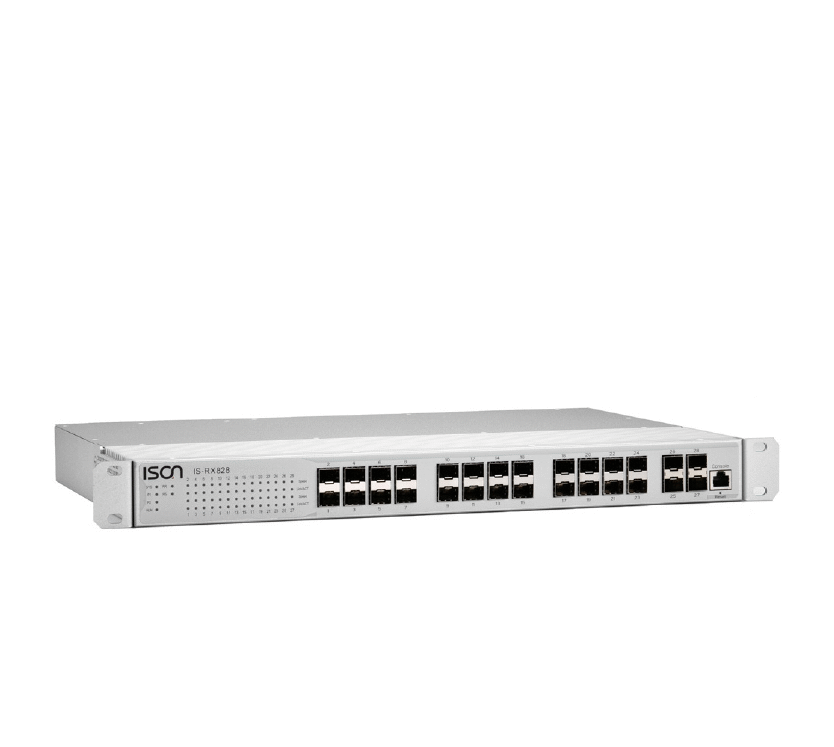

IS-RX528 Series (L2 10G)
28-port Gigabit 19” Managed Layer 2/4 Industrial Ethernet Switch
The IS-RX528 Series are full Gigabit Ethernet Switches with 4 10G and 24 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit speed Infrastructure or access to core layer networks; a full Gigabit network plus 10G uplinks provides higher throughput than legacy Fast Ethernet network. The IS-RX528 Series reduces the response time for timing sensitive applications which may be mix of video, voice, and data stream in the traffic flow. With the powerful S/W and H/W features, the IS-RX528 Series prioritize, partition and optimize user’s network while provide reliable and quality services. The IS-RX528 Series switches are suitable for access level network connection.
Product Features
- 24 Gigabit RJ45 Copper ports or 24 100 / 1000 Based SFP (SX/LX/LHX) ports plus 4 10G Based SFP+ ports
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Ring Coupling, Multiple Ring, Dual Homing
- Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN, MVR
- Multicasting support IGMP v1/v2/v3, proxy & snooping
- IEEE 802.1X Port-based access control / RADIUS Server
- Per VLAN mirroring
- Redundant Power Input 100/240 VAC, 50Hz ~ 60Hz
- Reverse power protection
- SNMP v1/v2c/v3, Trap / Inform
- Port Power Saving
- -40~75ºC operating temperature
- IP 30 Protection
- 1.5KV Hipot, 2KV surge immunity on RJ45 Copper port
- Rugged Fan-less design
- Din-Rail Mount, Wall Mount, Installation
- Fault Alarm Notification (Power, Ports)
