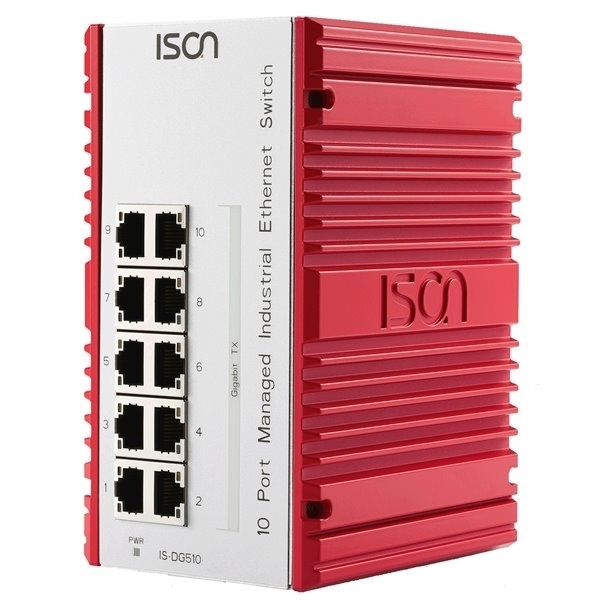

IS-DG510 Series (0/2/4GFX+10/8/6GTX)
10-port Gigabit DIN-Rail Managed Layer 2/4 Industrial Ethernet Switch
The IS-DG510 Series are full Gigabit Ethernet Switches with 10 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit speed Infrastructure; a full Gigabit network provides higher throughput than legacy Fast Ethernet network. The IS-DG510 Series reduces the response time for time sensitive applications which may combine video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, the IS-DG510 Series prioritizes, partitions and optimizes the user’s network while providing reliable quality services. The IS-DG512 Series switches are suitable for most Industrial applications.
Product Features
- 8/6 Gigabit RJ45 Copper ports plus 2/4 100 / 1000 Based SFP(SX/LX/LHX) ports
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- Support I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Support Ring Coupling, Multiple Ring, Dual Homing
- Private/Port-based VLAN, IEEE 802.1Q Tag-based VLAN, Protocol-based VLAN, Private VLAN, IP-Subnet based VLAN, Voice VLAN, IEEE 802.1ad Double Tagging (QinQ), MVR, VCL
- IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server
- VeriPHY Cable Diagnostics, Per VLAN mirroring
- Redundant Power Input (12~58 VDC) & Reverse power protection
- SNMP v1/v2c/v3, Trap / Inform, RMON
- DIN-Rail Mount, Wall Mount, Desk Mount Installation
- Port Power Saving
- -40~75ºC operating temperature
- Loop Protection
- IP 30 Protection
- 2KV surge immunity on RJ45 Copper port
- 1.5KV Hipot
- Rugged Fanless Design
- Fault Alarm Notification (Power, Ports)
Files Available
- Product Datasheet for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- Product Diagram for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- CE Report for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- FCC Report for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- CE Certification for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- FCC Certification for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- Quick Install Guide for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- CLI User Guide for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- WEB User Guide for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
- UL Certification for IS-DG510 Series (0/2/4GFX+10/8/6GTX)
