• Industrial Solution Over Network

IS-RG828HS10 Series (L3 MOQ:20)

IS-RG828HS10 Series (L3 MOQ:20)

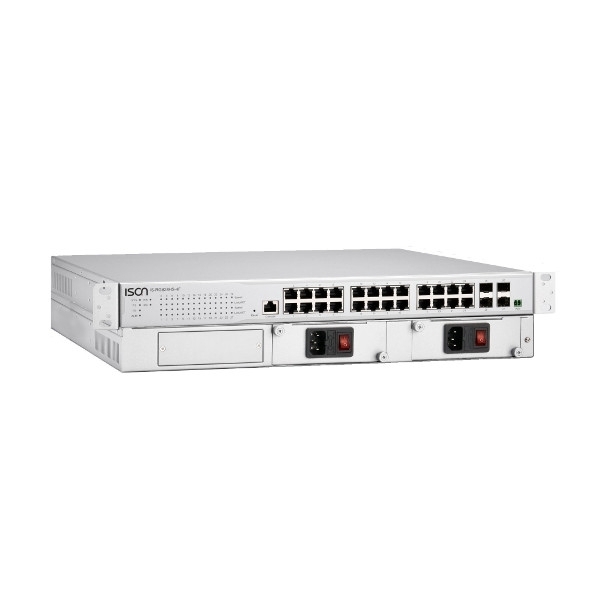

28-port Gigabit 19” Managed Layer 3 Lightning Protected Hot-Swap Power Industrial Ethernet Switch

The IS-RG828HS Series are 28-port full Gigabit L3 Industrial Ethernet Switches with hot-swappable redundant power supplies. The IS-RG828HS Series are built for various kinds of high density network connection infrastructures; a full Gigabit network provides higher throughput than legacy (10/100Mbs) Fast Ethernet networks. The IS-RG828HS Series reduce the response time for time sensitive applications which may be a mix of video, voice, and data streams in the traffic flow. With the powerful software and hardware features, the IS-RG828HS Series prioritizes, partitions and optimizes the user’s network while providing reliable quality of service. The IS-RG828HS Series switches are suitable for all kinds of Industrial applications.



Product Features

  • Hot-swappable redundant power Input 100/240 VAC, 50Hz ~ 60Hz
  • 24 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP (SX/LX/LHX) ports or 28 100 / 1000 Based SFP (SX/LX/LHX) ports
  • Support IPV4/V6
  • Support 9K Jumbo frames
  • Layer 3 Wired-Speed switching engine
  • Layer 2 Line-Speed Switching Fabric, non-blocking
  • Layer 3 function, Static routing, RIPv1/RIPv2, OSPF, VRRP
  • Layer 3 function, DVMRP, PIM-DM, PIM-SM, BGP, EGP (IS-RG828-28F Only)
  • Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
  • Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
  • I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
  • Ring Coupling, Multiple Ring, Dual Homing
  • Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN, MVR
  • Multicasting support IGMP v1/v2/v3, proxy & snooping
  • IEEE 802.1X Port-based access control / RADIUS Server
  • Per VLAN mirroring
  • SNMP v1/v2c/v3, Trap / Inform, RMON
  • 20KV / 10KV Lightning Protection (Power Module)
  • 10A fuse (Power Module)
  • Power On/Off switch (Power Module)
  • Port Power Saving
  • -40~75ºC operating temperature
  • IP 30 Protection
  • 1.5KV Hipot, 2KV surge immunity on RJ45 Copper port
  • Rugged Fan-less design
  • Support Rack Mount, Wall Mount, Installation
