IS-RG628P Series

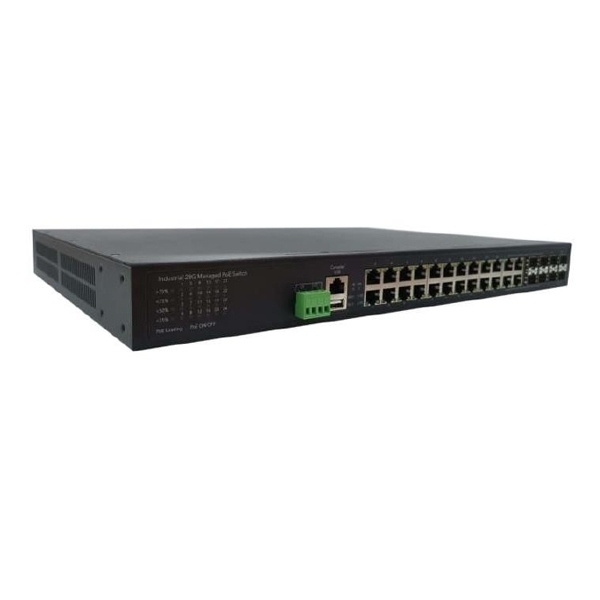

The IS-RG628P is an industrial-grade rackmount 28G switch with 24 Giga PoE+ ports, each can output 30W. The 4 Giga combo ports and 4x100M/1G fiber SFP ports can configure max. 8 fiber Giga ports for more field switches with longdistance fiber connections. Standard redundancy mechanisms are designed with enhancement such as ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) and ERPSv2 Plus, RSTP/MSTP. Many High-level cybersecurity protocols are implemented such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection. Rugged design and high EMC immunity make IS-RG628P an ideal solution for industrial Critical Surveillance applications.
Product Features
High Throughput Ethernet Switching
- 28-port Full GbE, by 20-port GbE RJ45 and 4-port GbE RJ45/SFP Combo, and 4 100M/1G SFP fiber ports.
- Up to 24 GbE IEEE 802.3at/af compliant PoE+ ports, up to 30W per port
- Up to 8 100M/1GbE fiber ports add more fiber links to field switches
- DDM function for fiber connectivity monitoring
- Powerful 1.2GHz ARM Cotex-A9 processor
- Energy-Efficient Ethernet for power saving
- Non-blocking switch fabric design
- 8 flexible Class of Service(CoS) queues, 512 L2 Multicast Groups for video applications
- 16K MAC address table, 9Kb Jumbo Frame
- PoE management including per-port Power Budget Control, PoE Scheduling, Priority, PD Alive Check and PoE Status
ITU-T G.8032 v2 ERPS Ring Redundancy
- ITU-T G.8032 v1/v2 ERPS Standard Ring Redundancy protocol
- Supports HW-based CFM transmission for overcoming GbE copper physical limitation and providing minimum 20ms recovery time, seamless restoration time
- Inter-Operability with 3rd party industrial switch and still remain fast recovery time
- Replace Ring + Chain + Dual Homing
- L2-L7 IPv4/ Access Control List (ACL)
- DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
- 802.1Q VLAN, Private VLAN, Advanced Port Security
- Multi-Level user passwords
- HTTPS/SSH/SFTP, 256-bit encryption
- 802.1X MAB for non-802.1X compliant end devices
- RADIUS/TACACS+ centralized password authentication
- Various configuration paths, including CGI WebGUI, CLI, SNMP and RMON
- LLDP for topology control, auto-topology drawing
- USB for easy field configuration and firmware update
and Wayside Network Switching
- EN50121-4 compliance for Railway Trackside, Roadside, Industrial Control Room applications
- Seamless forwarding while EMC attack (TBD)
- Excellent heat dissipation design for operating in -40~70oC environments
- High level EMC protection exceeding traffic control and heavy industrial standards’ requirements
- IEC 61000-6-2/4 Heavy Industrial Environment
